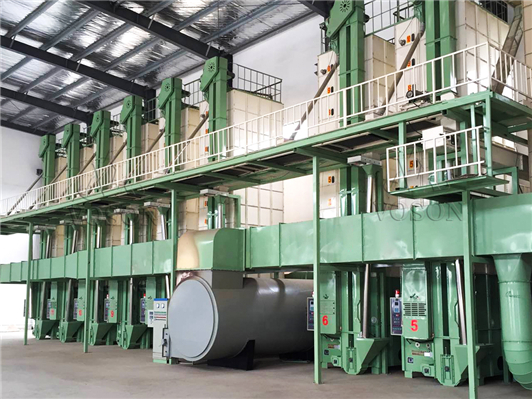

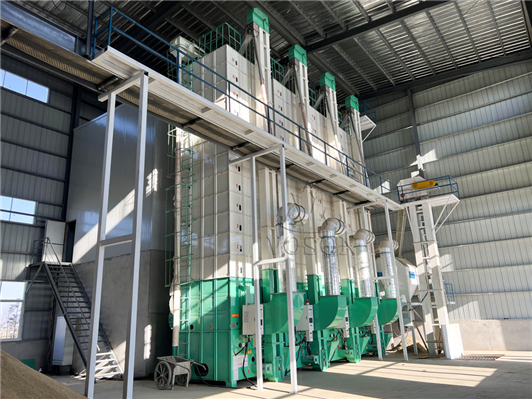

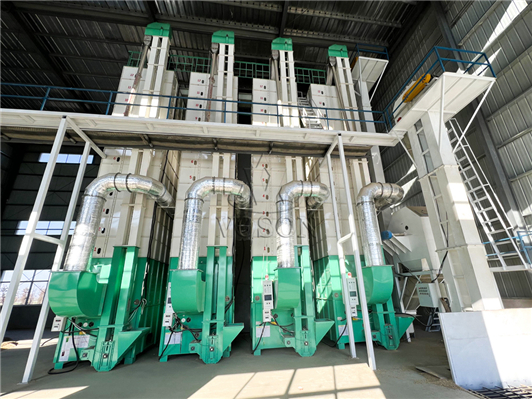

Grain Dryer
Using indirect hot air, the hot air is pure without tar and there is no caramel after the heat exchanger.
Grain Dryer Technical parameter:
| Model | 10 | 15 | 20 | 30 | 40 | 50 |
|---|---|---|---|---|---|---|
| Size（mm) | 4320*2492*7970 | 3726*3030*11614 | 3801*3490*12035 | 4956*4747*14936 | 5500*5250*11430 | 8000*5800*13300 |
| Batch processing (t) | 10 | 15 | 20 | 30 | 40 | 50 |
| Installation volume(m³） | / | 26.8 | 38.2 | 62.5 | 71.8 | 80 |
| Hot wind temperature range（℃） | 50-120 | 50-120 | 50-120 | 50-120 | 50-120 | 50-120 |
Grain Dryer Features:
Grain Dryer which is applied to paddy,wheat,corn,soybean,rapeseed and other seeds. The dryer adopts indirect heating which is non-pollution and can remove the dust in the grain during the rice millling plant; Temperture&moisture are monitored throughout the complete duration of the work,automatically,safely and fleetly; In order to avoid the excessive drying,then adopts the automatic water testing stopping devices;
It has some features:
Using indirect hot air, the hot air is pure without tar and there is no caramel after the heat exchanger.
It will not pollute the grain,The temperature difference is controlled by the temperature difference.
Correctly transport calories,Complete use of biomass as raw materials, low cost, energy conservation and environmental protection,Cereum bran, wood (dandruff), wheat rods, peanut rods, straws, corn cores (rods) and other abandoned crushing substances
