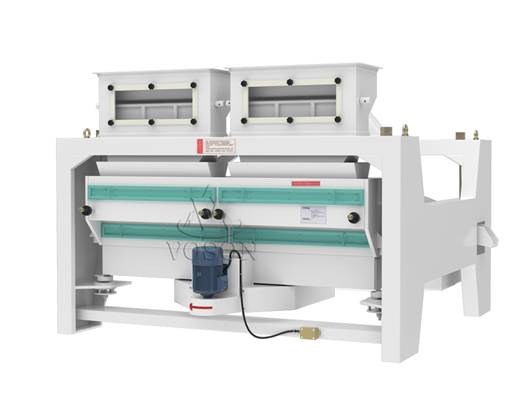

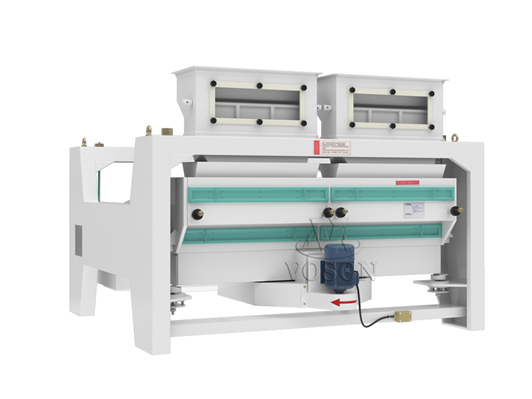

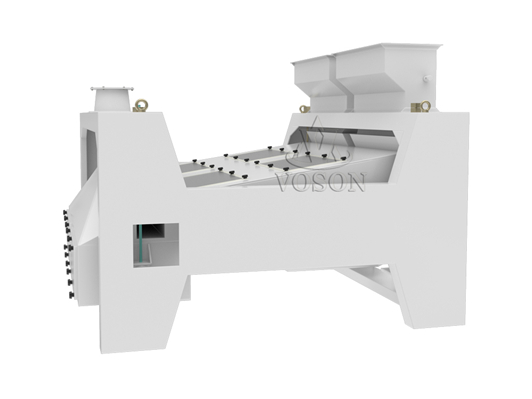

TQLM Rotary Cleaner Screen Machine
TQLM Rotary Cleaner Screen Machine is one of the rice milling machines mainly used in the rice processing plant to clean the paddy.
TQLM Rotary Cleaner Screen Machine Technical parameter:
| Model | TQLM80*2 | TQLM100*2 | TQLM125*2 | TQLM160*2 | TQLZ200*2 |
|---|---|---|---|---|---|
| Capacity(t/h) | 2-4.5 | 3-6.5 | 4-8 | 6-11 | 8-15 |
| Power(kw) | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 |
| Dimension(mm) | 2150*1400*1470 | 2150*1400*1470 | 2150*1450*1470 | 2150*2050*1470 | 2150*2460*1470 |
| Weight(kg) | 600 | 670 | 730 | 950 | 1100 |
TQLM Rotary Cleaner Screen Machine Product features:
TQLM Rotary Cleaner Screen Machine have 3 different motion tracks on the same sieve plate.the sieve feed end swing from left side to the right side approximately.
The sieve centre body do as flat circular motion. Which is good for materials overfloeing and automatic classification. Airtight sieve body equipped with suction device jess dust. Using four hanging screen,smooth operation and durable.
It has some features:
-Separate the large,small and light impurities from grain
-The sieve runs with three tracks at the same time, the right and left swaying near the inlet makes for the material to be divided evenly.
-The to-and-fro move of the middle sieve and the rotary move of the outlet makes for the classification.
-The airtight sieve with front and back dust collecting device raises little dust suspended with four steel wires, the sieve runs stably, and longer endurance.
